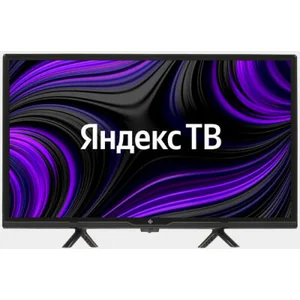

dexp H24F8000C

dexp H24F8000C

DEXP H24F8000C

Бренд
dexp
Модель
H24F8000C
Шасси
TP.SK508S.BP818
MainBoard
TP.SK508S.PB818
MainBoard IC
CPU HI3751, eMMC KLM8G1GETF-B041, AUDIO, DC/DC
Panel
C240Y19-5C
Подсветка
LB-C240Y19-5C(XCG5CLS01)-X1
Блок питания (PSU)
integrated into MainBoard
PWM / Power IC
SO-10 // PWM SOT23-6
Тюнер
esli otsutstvuet vozmozhnost' nastroiki na televizionnye kanaly, sleduet ubedit'sia v nalichii pitaiushchikh napriazhenii, kotorye neobkhodimo izmerit' na sootvetstvuiushchikh vyvodakh tiunera i proverit' PO na korrektnost'. Impul'sy obmena dannymi tiunera s protsessorom mozhno prokontrolirovat' ostsillografom
Другие компоненты
{"MOSFET LED driver": "TO-252", "MOSFET Power": "TO-252"}
