supra STV-LC32ST0075W

supra STV-LC32ST0075W

SUPRA STV-LC32ST0075W

Бренд
supra
Модель
STV-LC32ST0075W
Шасси
V3X11
MainBoard
CV6681-K32
MainBoard IC
CPU: MSD6681, eMMC: KLM8G1GETF, Audio: TPA3138D2
Panel
C320Y19-5C
Диагональ
32"
Разрешение
1366x768
Подсветка
Edge LED
Блок питания (PSU)
integrated into MainBoard
PWM / Power IC
SO-8 // PWM SOT23-6
T-CON
MT3151A05-5-XC-9
Тюнер
DVBT/T2 & SAT
Другие компоненты
{"MOSFET LED driver": "TO-252", "MOSFET Power": "N-FET TO-252"}
Год
2020

Похожие телевизоры

dexp H32G8000C
dexp
H32G8000C
MainBoard: CV6681-K32
Panel: V320BJ8-Q01 Rev. C1
hyundai LED32FS5005
hyundai
LED32FS5005
MainBoard: CV6681-K32
Panel: LSC320AN10-H07 / C320Y19-5C

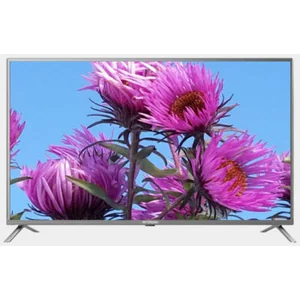

hyundai LED32ES5001
hyundai
LED32ES5001
MainBoard: TP.MT5510S.PB756
Panel: C320Y19-5C
supra STV-LC32ST00100W
supra
STV-LC32ST00100W
MainBoard: CV6681-K32
Panel: C320Y19-7N

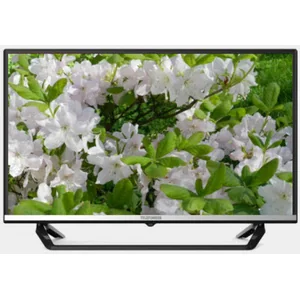

telefunken TF-LED32S08T2
